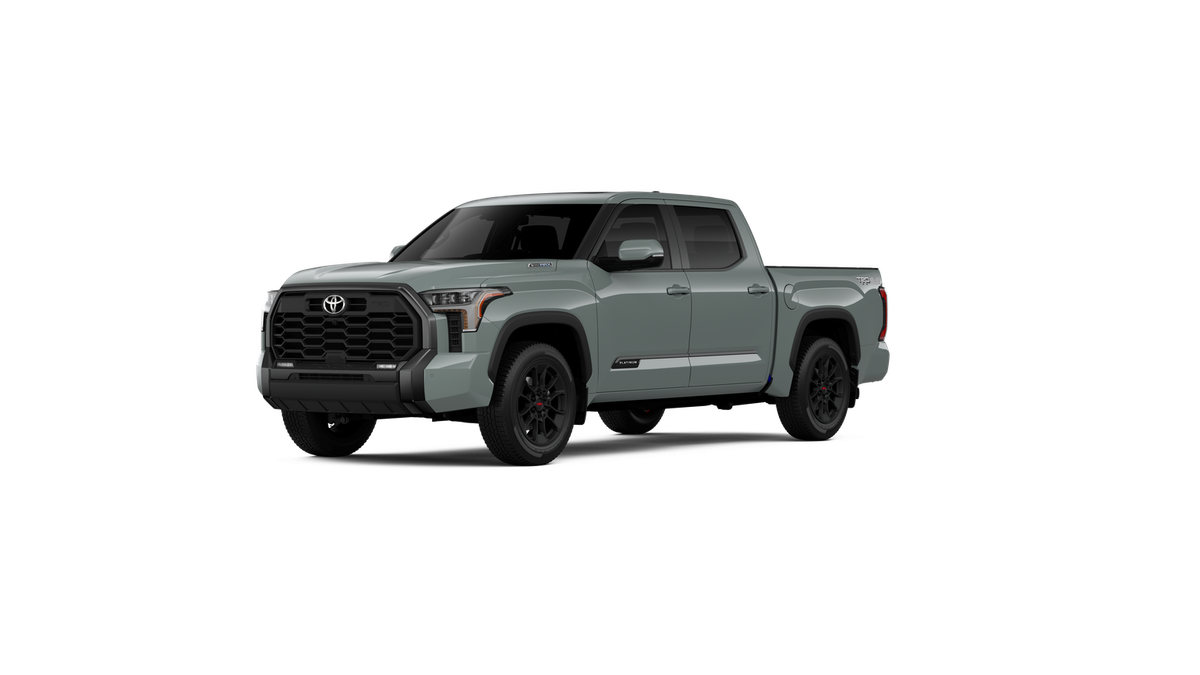

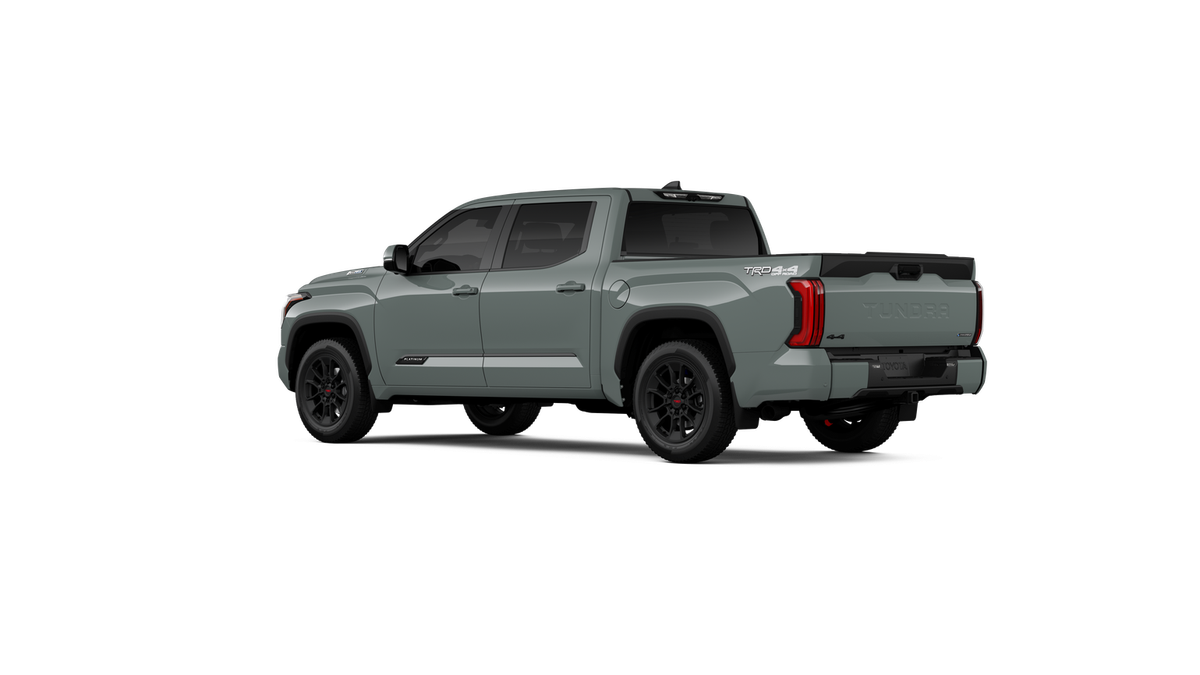

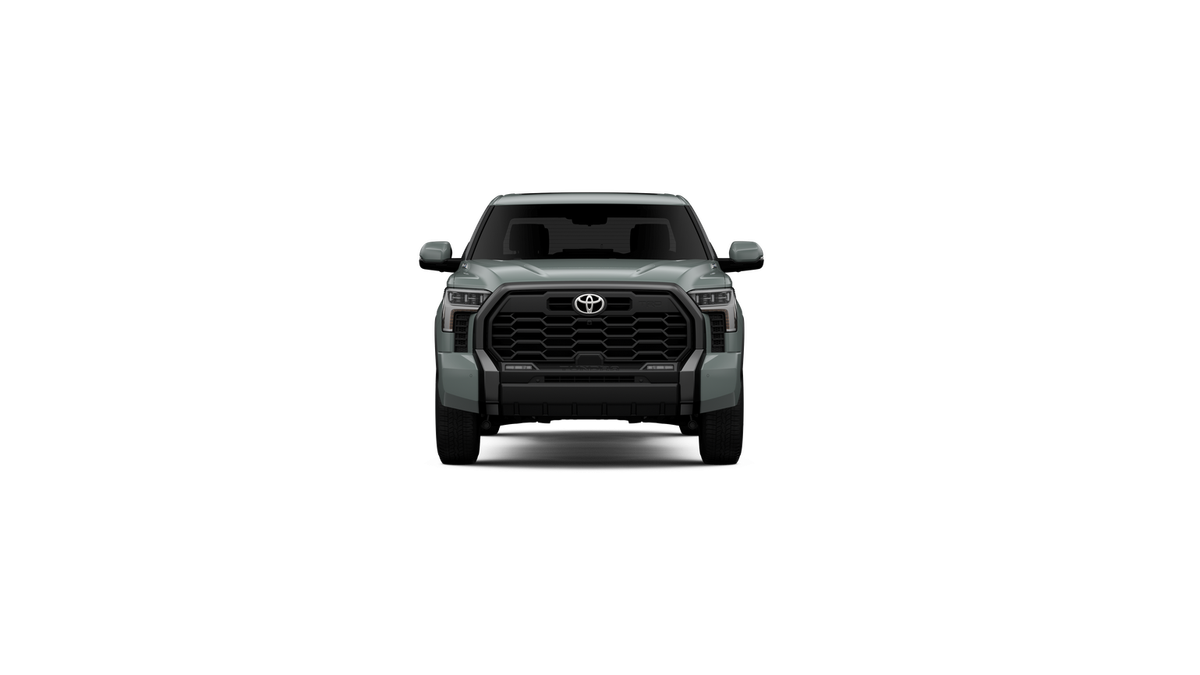

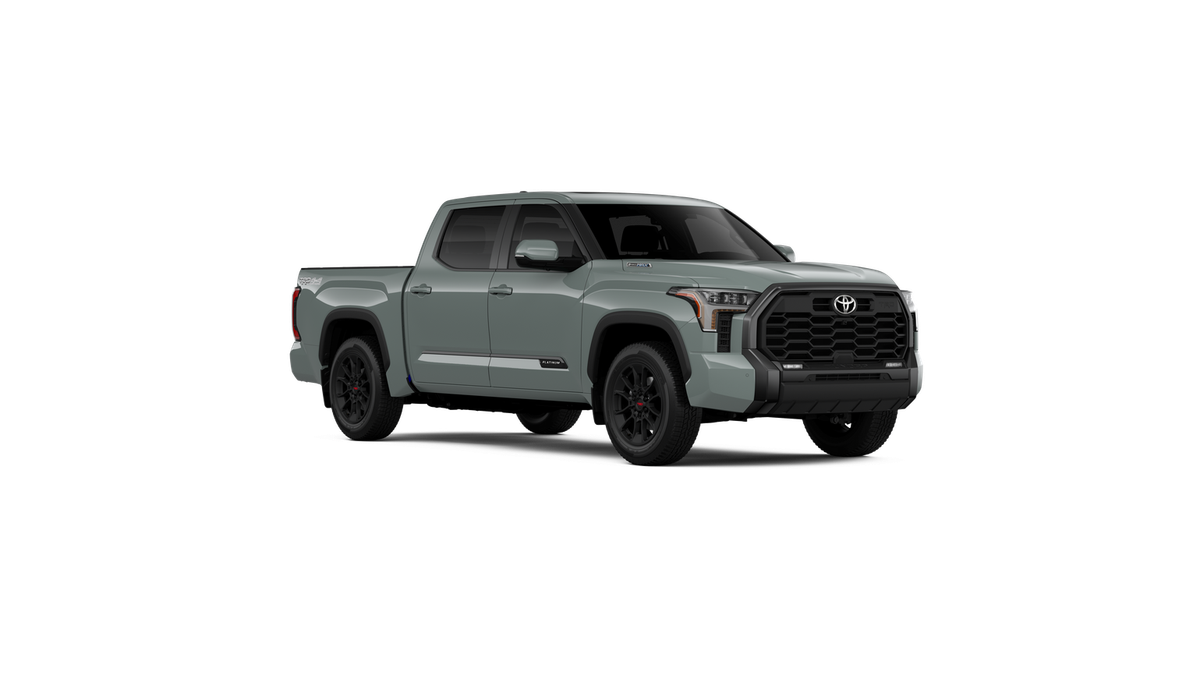

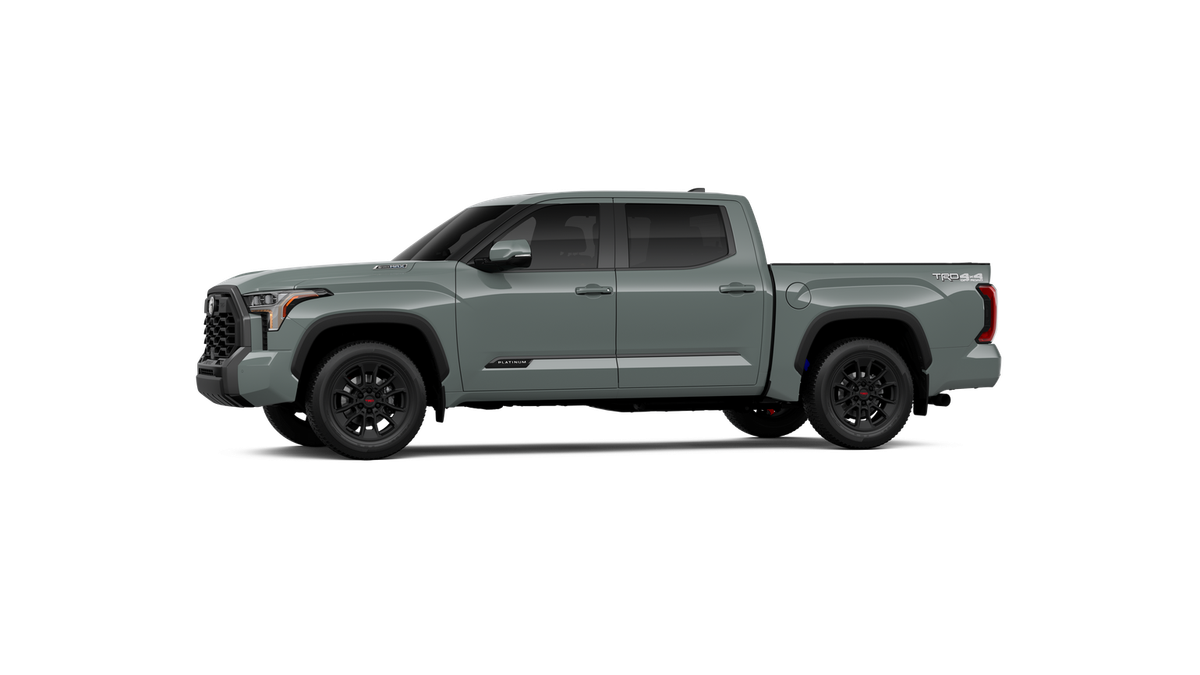

New 2025 Toyota Tundra i-FORCE MAX Platinum CrewMax 5.5ft
4x4
Vehicle Summary
-
Lunar Rock
-
Black Leather-trimmed
-
VIN 5TFWC5DB2SX30A731
-
Stock #
Allocated -
Condition New
-
Exterior Lunar Rock
-

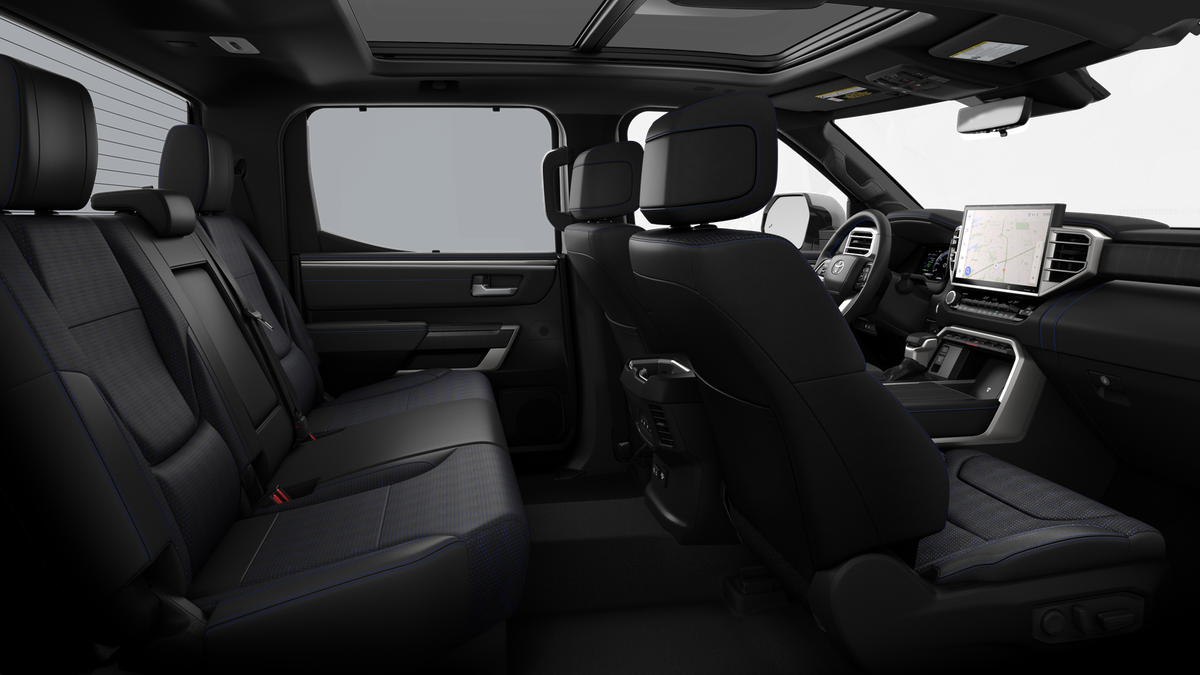

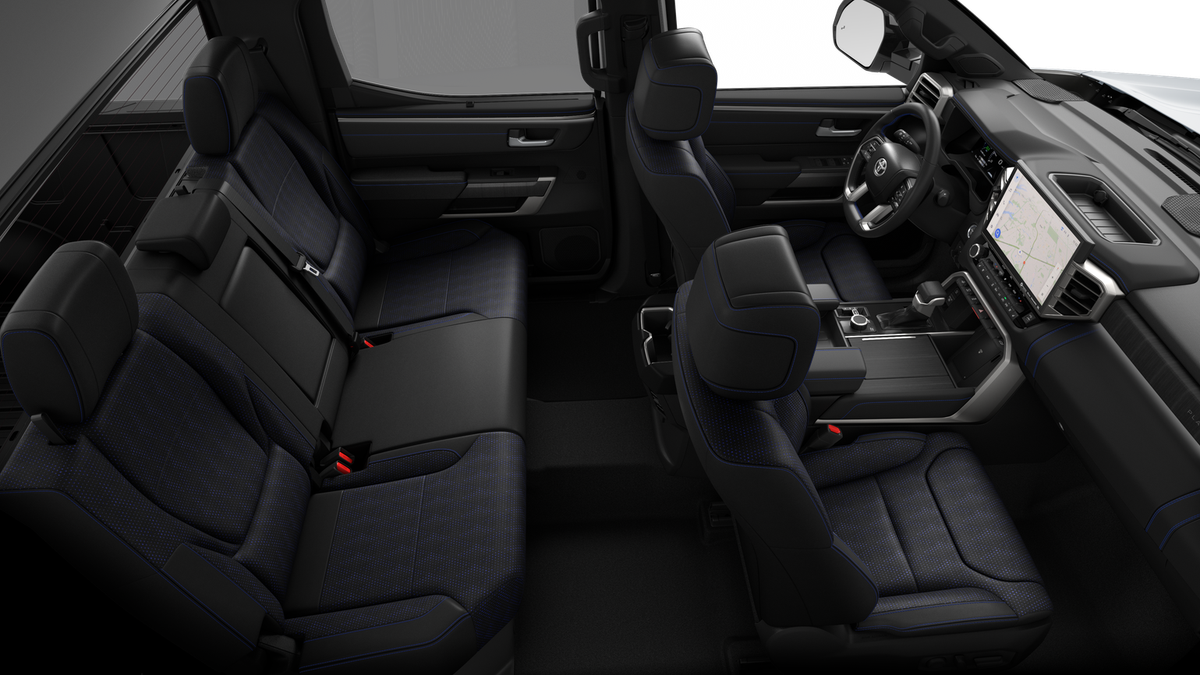

Interior Black Leather-trimmed
-
Engine i-FORCE MAX V6 Hybrid Engine
-
Fuel Type Hybrid
-
Drivetrain 4x4
-
Transmission 10-Speed Electronically Controlled automatic Transmission with intelligence (ECT-i) and sequential shift mode
-
Location Toyota of Orange
ToyotaCare is a no cost maintenance plan with 24-hour roadside assistance. The ToyotaCare plan covers normal factory scheduled maintenance for 2 years or 25,000 miles, whichever comes first. 24-hour roadside assistance is also included for 2 years and unlimited miles.
Toyota Safety Sense™ (TSS) is a bundle of active safety features included on many new Toyota vehicles at no additional cost. These innovative features were designed to help protect you and your passengers from harm.
MPG FUEL ECONOMY
CITY
HWY
AVG
Horsepower
HP
Key Features
Collision Avoidance
Lane Departure Warning
Lane Keep Assist
Adaptive Cruise Control
Cruise Control
Blind Spot Monitor
Rear Cross Traffic Alert
Parking Assist
Side-Impact Air Bags
Alloy Wheels
Tow Package
Homelink
Remote Cargo Access
Keyless Entry
Push Start
Panoramic Moonroof
Backup Camera
Leather Seats
Power Seats
Heated Seats
Automatic Climate Control
Premium Audio
Fog Lights
Vehicle Options
Available Manufacturer Incentives
$2000
$2,000 Customer Cash
Effective Dates: 2025/06/03 - 2025/06/30
You May Also Qualify For
$500
$500 Military Rebate
Effective Dates: 2025/06/03 - 2025/06/30
$500
$500 College Rebate
Effective Dates: 2025/06/03 - 2025/06/30
Available Finance Offers
1.99% APR
1.99% APR for 48 Months
Effective Dates: 2025/06/03 - 2025/06/30
2.99% APR
2.99% APR for 72 Months
Effective Dates: 2025/06/03 - 2025/06/30
2.99% APR
2.99% APR for 60 Months
Effective Dates: 2025/06/03 - 2025/06/30
1.99% APR
1.99% APR for 36 Months
Effective Dates: 2025/06/03 - 2025/06/30
1.99% APR
1.99% APR for 24 Months
Effective Dates: 2025/06/03 - 2025/06/30
Welcome To
Toyota of Orange
Orange, CA
Make Toyota of Orange your first and last stop. We strive to create a quality shopping experience for each of our customers and we will do everything we can to make sure you leave our dealership with a smile on your face. We always put our customers first, and we've even received the Toyota President's Award for our outstanding customer service. You can count on us to provide any kind of assistance you might need.
We believe in providing the best products and services for the most competitive prices. Each of these new vehicles comes with a no-cost 2-year or 25,000-mile maintenance package, so you can keep your vehicle in great shape. That maintenance and any future maintenance or repairs can be done at our service center. Our technicians are factory-trained and have years of experience working with Toyota models; some of them have even been here since our service center first opened, so we really know Toyota vehicles inside and out. We offer Toyota express maintenance, which means that minor services can be completed in under an hour. And while you wait, you can take advantage of things like out shuttle service to get you wherever you need to go.
If this sounds like the kind of experience you would like to have the next time you need a new vehicle or your current vehicle needs some maintenance, come on over to our Orange, CA dealership. We are always happy to help with all your Toyota needs.
Vehicle Features
-

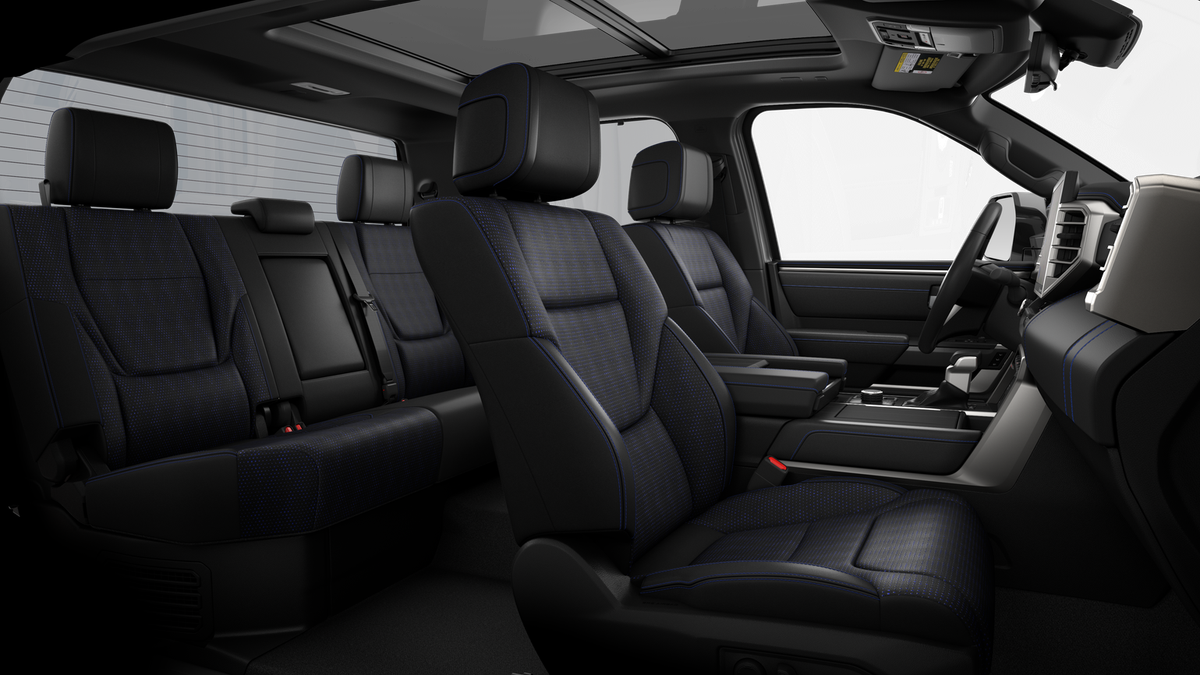

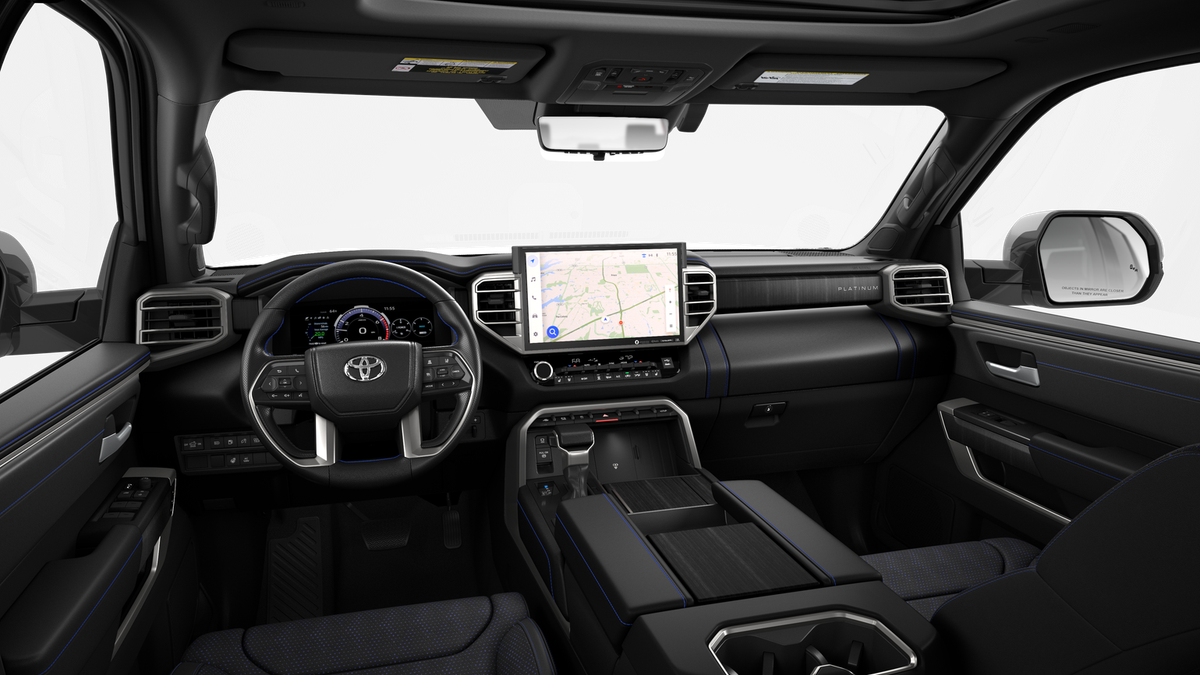

Interior
- Multifunction massaging front seats
- Digital display auto-dimming rearview mirror with compass and HomeLink® universal transceiver
- Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
- Power tilt/slide panoramic roof with power sunshade
- Power vertical rear window with defogger and privacy glass
- Acoustic laminated windshield
- Power windows with one-touch auto up/down and jam protection
- Rear-door sunshades
- Front and rear LED maplights
- Illuminated center console storage bin and glove box
- Instrument panel and door ambient lighting, illuminated driver and passenger footwells, and front- and rear-door LED pocket lights
- "PLATINUM" instrument panel badge
- Soft-touch instrument panel, center console and door surfaces
- Leather-wrapped shift knob
- Backup camera with projected path
- Panoramic View Monitor (PVM) with cameras
- Drive Mode Select (DMS) switch and dial
- Qi-compatible wireless smartphone charging
- Rear-seat air vents
- Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
- Front 12V auxiliary power outlet
- 120V/400W rear-seat AC power outlet
- Overhead console with rear window control, sunglasses storage and Safety Connect®
- Electronic locking fuel door
- Front and rear assist grips
-
Exterior
- Dark chrome-accented side door moldings with "PLATINUM" badge
- i-FORCE MAX tailgate badge
- 20-in. dark-gray-painted alloy wheels
- Front door handles with touch-sensor lock/unlock feature
- Premium LED headlights with chrome trim, LED Daytime Running Lights (DRL), sequential turn signals, auto on/off feature, and automatic leveling adjustment
- LED fog lights
- Premium LED taillights with sequential turn signals
- Dark chrome-accented mesh grille with dark chrome surround
- Rain-sensing washer-linked variable intermittent windshield wipers
- Heated power outside mirrors with turn signal and blind spot warning indicators, and power-folding and reverse tilt-down features; auto anti-glare driver's-side mirror only
- 5.5-ft. Short Bed
- Aluminum-reinforced composite bed construction
- 120V/400W bed-mounted AC power outlet and LED bed lights
- Power tailgate-release switch, located in taillights, key fob and dash with knee-lift assit
- "TUNDRA" stamped easy lower and lift tailgate
- LED center high-mount stop light (CHMSL) with integrated cargo lights
- LED Trailer Reverse Assist (TRA) light
- Gloss-black-painted A-pillar, except on Midnight Black Metallic and Blueprint
- Gloss-black window molding, tailgate spoiler and overfenders; color-keyed door handles and mirror caps
- "i-FORCE MAX" hood badge
- "4x4" tailgate badge
-
Mechanical
- Engine: i-FORCE MAX 3.4L Twin-Turbo V6 Hybrid; 437 hp @ 5200 rpm; 583 lb.-ft. @ 2400 rpm
- Valvetrain: 24-valve DOHC aluminum cylinder heads with Dual Variable Valve Timing with intelligence (VVT-i); 3445 c.c. aluminum engine block; 85.5 x 100 (mm.) bore x stroke; 10.4:1 compression ratio
- Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
- Fuel System: D-4ST direct-injection and port-injection fuel system
- Ignition System: Conventional 12V starter
- Exhaust System: Stainless steel exhaust system
- HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
- HV Electric Motor: Electric motor power: 48 hp (36 kW)
- HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N•m)
- HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery with 1.87 kWh capacity
- Drive Modes: Eco, Normal and Sport driving modes
- Transmission: 10-speed Electronically Controlled automatic Transmission with intelligence (ECT-i), sequential shift mode, and uphill/downhill shift logic
- Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low range) and Automatic Limited-Slip Differential (Auto LSD)
- Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
- Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
- Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
- Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
- Brakes: Electric Parking Brake (EPB)
- Body/Frame: Fully boxed high-strength steel ladder frame
- Body/Frame: Hydraulic cab mounts
- Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
- Body/Frame: Active aero front spoiler
- Body/Frame: Active grille shutters
- Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector
- Towing: Integrated Trailer Brake Controller (ITBC) with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls
-
Safety
- 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
- Blind Spot Monitor (BSM) with Rear Cross-Traffic Alert (RCTA) and Trailer Merge Warning
- Front and Rear Parking Assist with Automatic Braking
- Eight total airbags, including driver and passenger side, knee and curtain airbags
- LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
- Child-protector rear door locks and power window lockout control
- Star Safety System™ — includes Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology® (SST)
- Drive-Start Control (DSC)
- Hill Start Assist Control (HAC)
- Tire Pressure Monitor System (TPMS)
- Driver and front passenger active headrests
Toyota Safety Sense™ 2.5 (TSS 2.5) Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), Lane Tracing Assist (LTA), Automatic High Beams (AHB), Road Sign Assist (RSA)
